RVMDVR704J

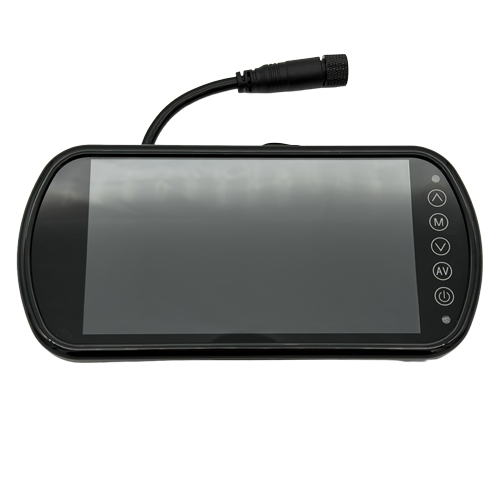

Type : 7 inch 4-Channel FHD (Full High Definition) Monitor
TV Video Standard : NTSC / PAL
Resolution : 1080P (AHD)
Input Channels : 4-Inputs
Connector : 4 x 4-position Aviation Connector (Video & Power)
I/O Triggers : Chan 1 Trigger => Brown wire color (Chan 1 display on Screen)
Chan 2 Trigger => Green wire color (Chan 2 display on Screen) Chan 3 Trigger => Yellow wire
color (Chan 3 display on Screen) Chan 4 Trigger => Blue wire color (Chan 4 display on
Screen)
Speaker : N/A
Mount : Clip Bracket or Brackets Installation
Touch Screen : N/A
Viewing Angle : U = 180 : D = 180 : L = 180 : R = 180
Screen Backlight : LED
Brightness : 500 cd/m2 (nits)
Built-in light-Sensor : Auto adjust screen light on Day / Night
Contrast Ratio : 500 : 1
Split Screen : 1-Channel / 2-Channel 3-Channel / 4-Channel etc.
Record : Max 2-Channel @ 720P Record
Micro SD Card : 256 GB Max (Class 10 or faster speed)
Waterproof (IP Rating) : IP64
Power Supply (Operation) : 8 – 36 VDC (Red Wire = +12, Black Wired = Ground Operating
Temperature : -30 deg to +70 deg C
Gross Weight : 1.32 Lbs. 600 g
