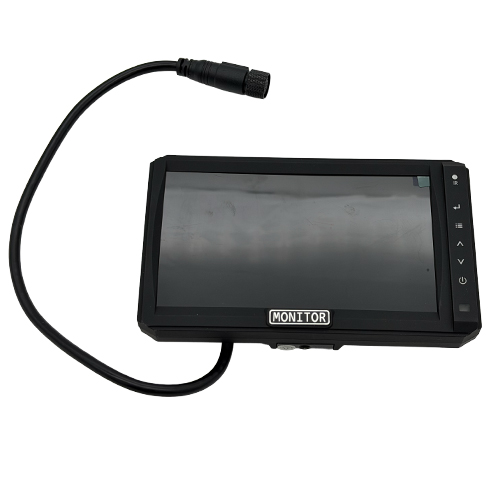

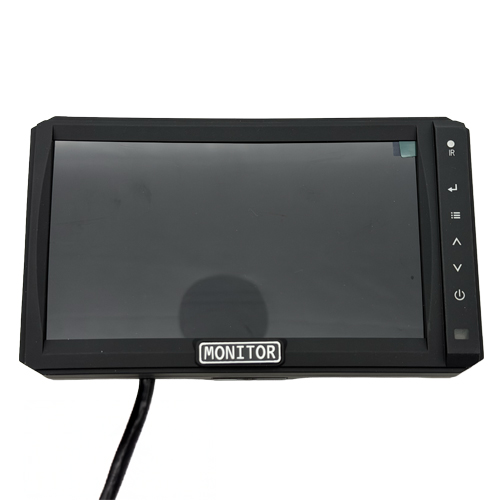

IPS 7 Inch 4-Channel Quad FHD monitor
Screen Size : 7 inch
TV System : NTSC / PAL
Resolution : 1024 * 600 (RGB)
Video Resolution : 1080P / 720P / CVBS Auto Adjust
Touch Screen : N/A
Screen Backlight : Led Lights
Brightness : 500 cd/m2 (nits)
Viewing Angle : Up => 180 deg, Down => 180 deg , Left => 180 deg , Right => 180 Deg
Contrast Ratio : 500 : 1
Video Inputs : 4 Inputs – Aviation Connectors
Record : 4-Channel 720P AHD Record
SD Card Slot : Yes => Video Recording and Firmware Update
Storage : 256 GB Max SD Card (Class 10 and Faster)
Split-Screen Mode : 1-Chann , 2-Chann, 3-Chann or 4-Channel
I/O Triggers : 4 Trigger Wires (+12 VDC Trigger)
Chan 1 – Trigger wire => Brown Display Chan 1 on LCD Chan 2 – Trigger wire => Green
Display Chan 2 on LCD Chan 3 – Trigger wire => Blue Display Chan 3 on LCD Chan 4 – Trigger
wire => Gray Display Chan 4 on LCD
IP Rating : IP64
Speaker : Built In
IR Wireless Remote : Yes => Video Recording and Firmware Update
Power Supply (Operation) : 8 – 36 VDC (Red = IGN, Yellow => Battery, Black = Ground)
Operating Temperatur : -30 deg to +70 deg C
Gross Weight : 1.54 lbs. (0.7 Kg) Dimensions (Screen)
Width : 7.11 Inches 180.50 mm
Height : 4.53 Inches 115.00 mm
Depth (Top) : 2.48 Inches 63.00 mm
Depth (Bottom) : 1.41 Inches 35.80 mm
