BEÜLER

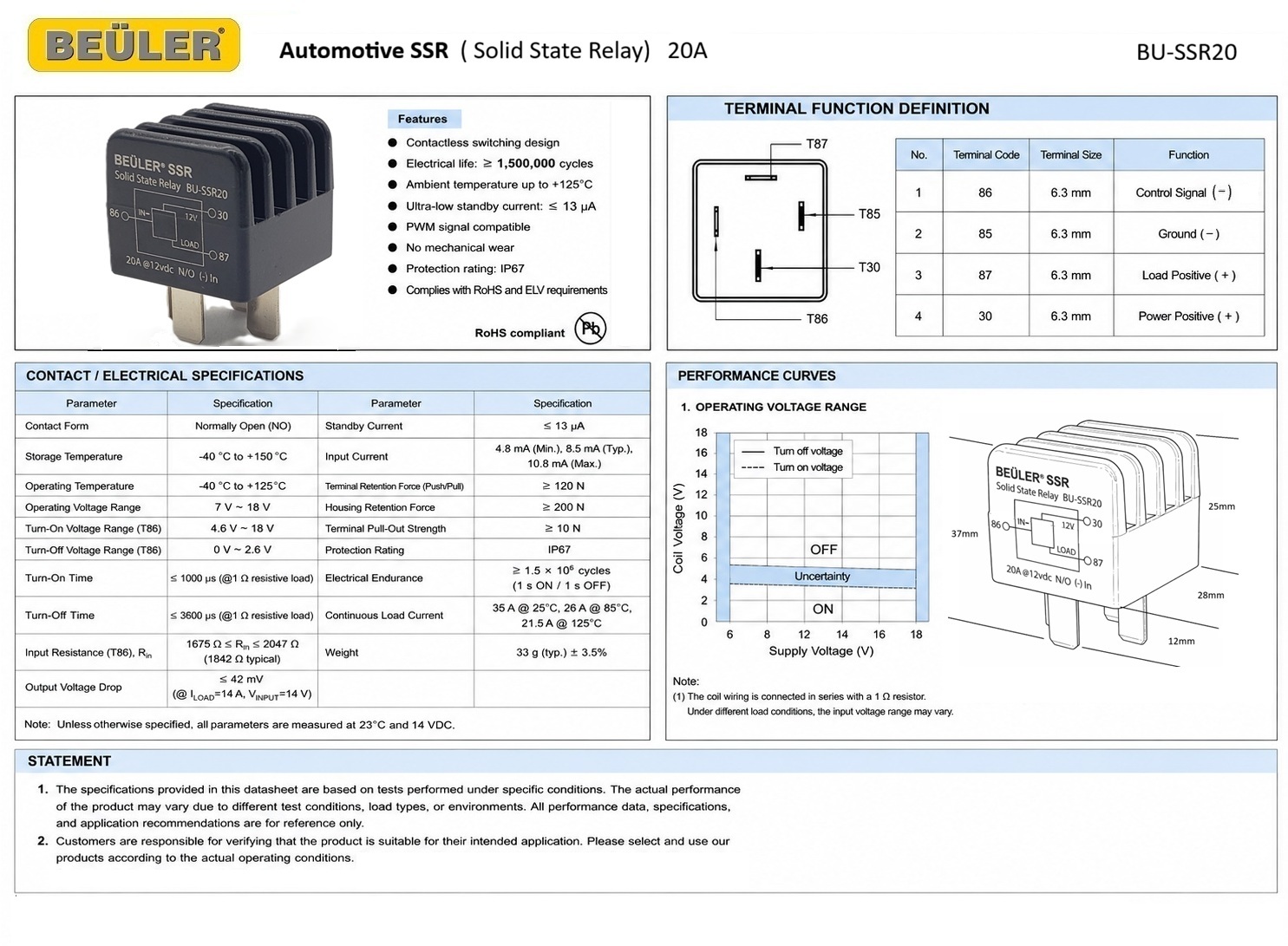

20 Amp SOLID STATE Relay
Features
- Contactless switching design
- Electrical life: ≥ 1,500,000 cycles
- Ambient temperature up to +125°C
- Ultra-low standby current: ≤ 13 µA
- PWM signal compatible
- No mechanical wear
- Protection rating: IP67
- Complies with RoHS and ELV requirements
- RoHS compliant
Contact / Electrical Specifications
General
- Contact Form: Normally Open (NO)
- Weight: 33 g (typ.) ± 3.5%
- Protection Rating: IP67
Temperature Ratings
- Storage Temperature: -40°C to +150°C
- Operating Temperature: -40°C to +125°C
Voltage Ratings
- Operating Voltage Range: 7 V – 18 V
- Turn-On Voltage Range (T86): 4.6 V – 18 V
- Turn-Off Voltage Range (T86): 0 V – 2.6 V
Timing Characteristics
- Turn-On Time: ≤ 1000 µs (@ 1 Ω resistive load)
- Turn-Off Time: ≤ 3600 µs (@ 1 Ω resistive load)
Input Characteristics
- Input Resistance (T86):
- Minimum: 1675 Ω
- Maximum: 2047 Ω
- Typical: 1842 Ω
- Input Current:
- Minimum: 4.8 mA
- Typical: 8.5 mA
- Maximum: 10.8 mA
Output Characteristics
- Output Voltage Drop:
- ≤ 42 mV
- Conditions: ILOAD = 14 A, VINPUT = 14 V
Current Ratings
- Standby Current: ≤ 13 µA
- Continuous Load Current:
- 35 A @ 25°C
- 26 A @ 85°C
- 21.5 A @ 125°C
Mechanical Retention Strength
- Terminal Retention Force (Push/Pull): ≥ 120 N
- Housing Retention Force: ≥ 200 N
- Terminal Pull-Out Strength: ≥ 10 N
Reliability
- Electrical Endurance:
- ≥ 1.5 × 10⁶ cycles
- Test cycle: 1 second ON / 1 second OFF
Terminal Functions
Terminal 86
- Size: 6.3 mm
- Function: Control Signal Positive (-)
Terminal 85
- Size: 6.3 mm
- Function: Ground (−)
Terminal 87
- Size: 6.3 mm
- Function: Load Positive (+)
Terminal 30
- Size: 6.3 mm
- Function: Power Positive (+)
Physical Dimensions
- Height: 37 mm
- Width: 28 mm
- Depth: 25 mm
- Terminal Length: 12 mm
Operating Characteristics
- Supply Voltage Range: 6 V – 18 V
- Turn-On Threshold Region: Above approximately 4.6 V
- Turn-Off Threshold Region: Below approximately 2.6 V
- Note: Coil wiring is connected in series with a 1 Ω resistor.
- Under different load conditions, the input voltage range may vary.

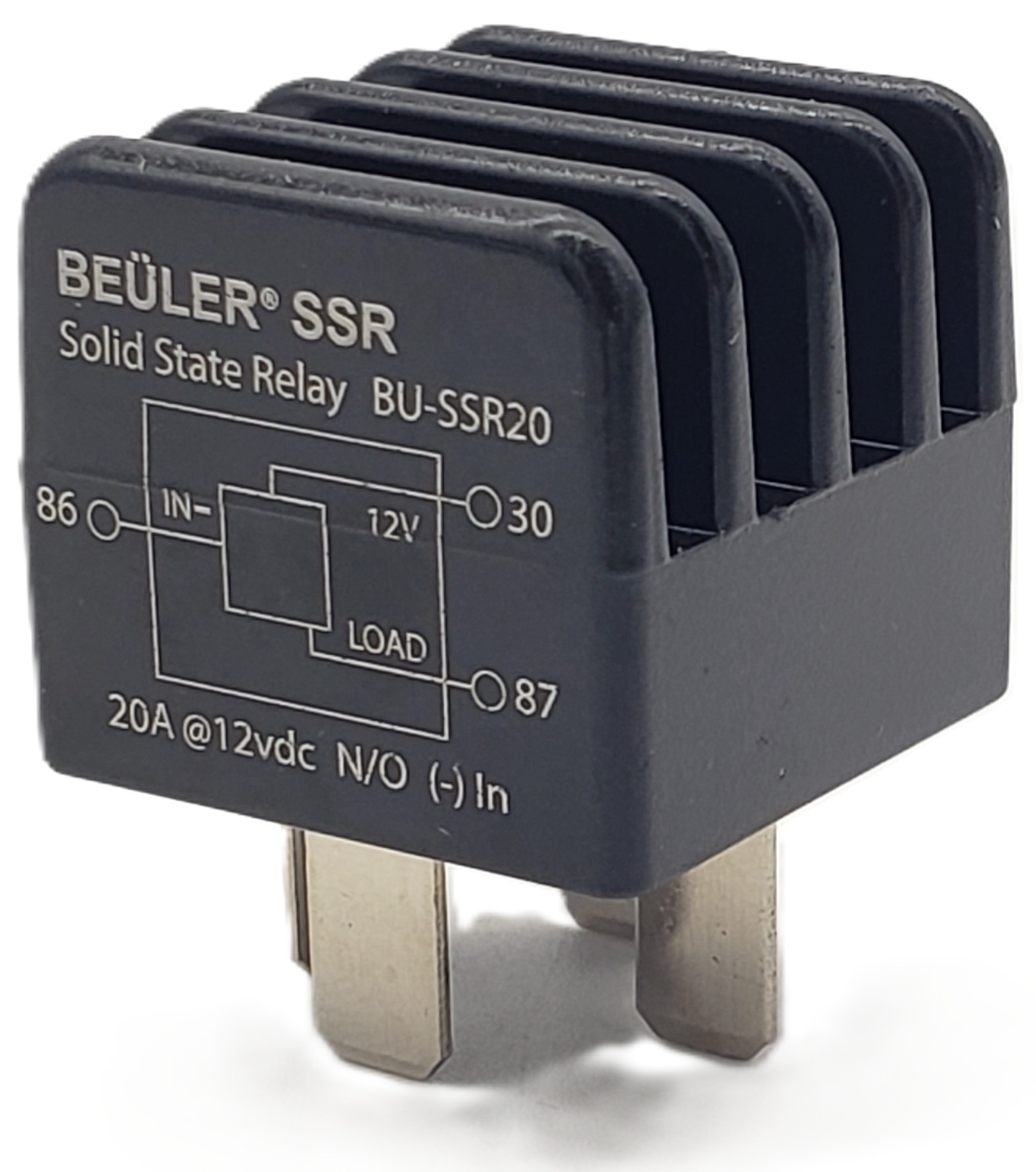

Product Marking
- Rated Load: 20 A @ 12 VDC
- Contact Configuration: N/O (Normally Open)
- Input Voltage: 12 VDC
- Terminal Designation:
- 86 = Input (+)
- 85 = Ground (−)
- 30 = Power (+)
- 87 = Load (+)
