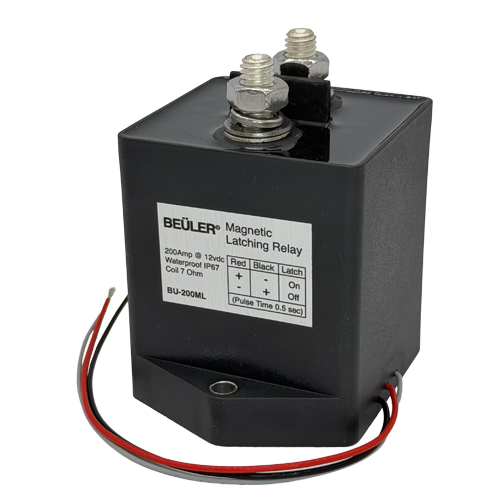

BËULER® Magnetic Latching Relay
Zero power draw in the on or off state !
- Magnetic Bistable Latching Single Coil
- Reverse polarity to Latch / Un-Latch
- Current 200A @12vdc
- Dimensions 60mm W x 78mm D x 88mm H
- Coil Pulse Time 0.5 Sec. / 1.6A
- Coil Resistance 7 Ohm
- Waterproof IP67
Diagram (Latch control)
- Red + / Black – → On
- Red – / Black + → Off
(Pulse Time 0.5 sec)
Models:
- BU-200ML → 200 Amp
- BU-400ML → 400 Am
